Irobhothi yokuthutha i-SDCXRB-03A1/RB06-900/ RB08/ RB08A3-1490/ RB08A3-1700/ RB08A3-1840/ RB10/ RB20/ RB50/ RB130/ RB165/ RB210

Intshayelelo emfutshane yemveliso

Iirobhothi zemizi-mveliso zothutho zisetyenziswa kakhulu ekugayeni, ekupoliseni, ekulayisheni nasekufakeni izixhobo zoomatshini, ekuthuthweni ngokuzenzekelayo ukuze kugxishwe imigca yemveliso ezenzekelayo, njl. Irobhothi yothutho yimveliso ezenzekelayo esebenzisa umkhondo wentshukumo werobhothi ukuze ithathe indawo yothutho lwesandla. Inzuzo yayo kukuba inokufezekisa zonke iintlobo zemisebenzi elindelekileyo ngokuhlela. Idibanisa iingenelo zomntu kunye nomatshini kwisakhiwo sayo kunye nokusebenza kwayo, ingakumbi iquka ubukrelekrele bokwenziwa kunye nokuzivumelanisa nezimo.

QHAGAMSHELANA NATHI

Iinkcukacha zeMveliso

Iithegi zeMveliso

Iiparameters zobugcisa

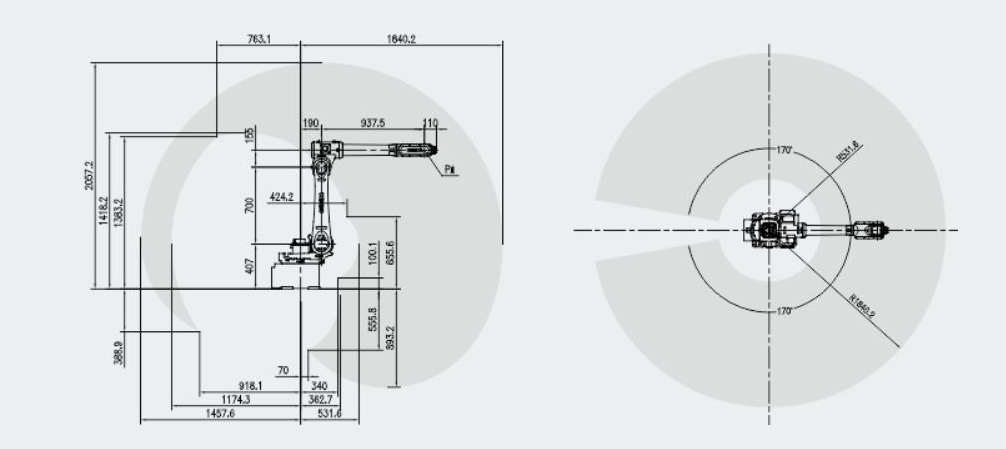

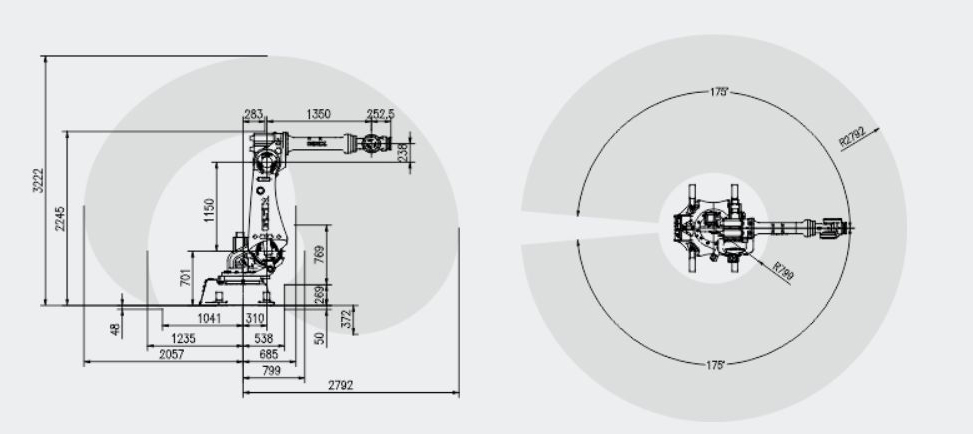

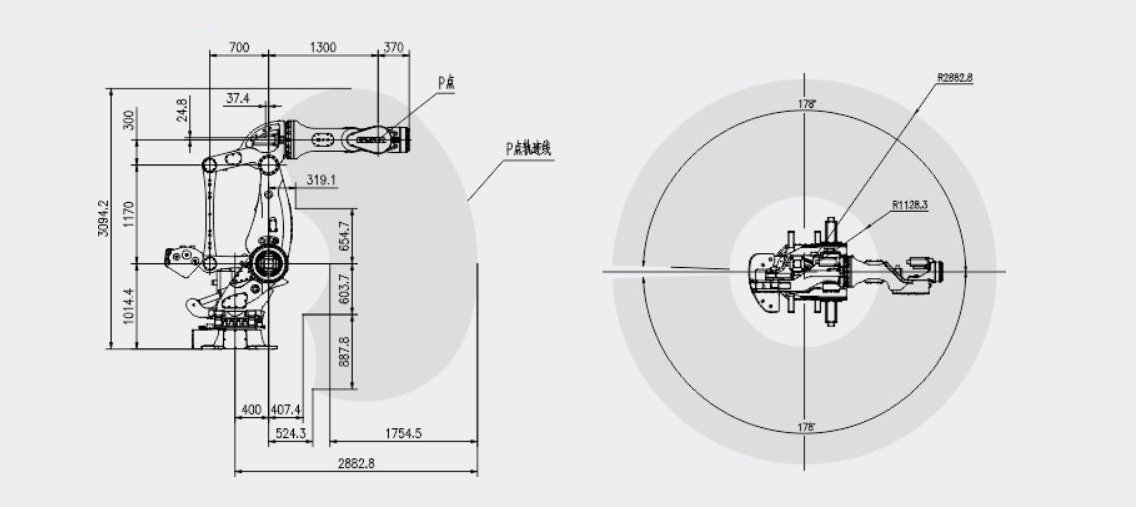

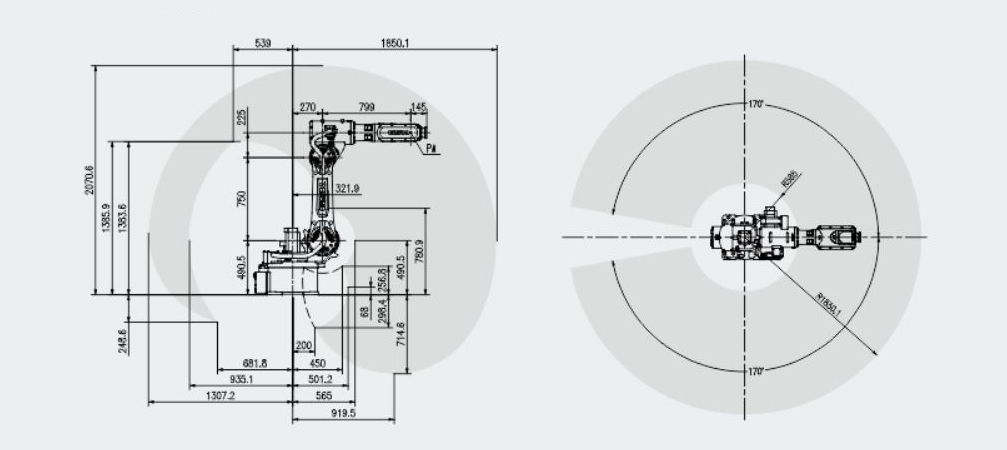

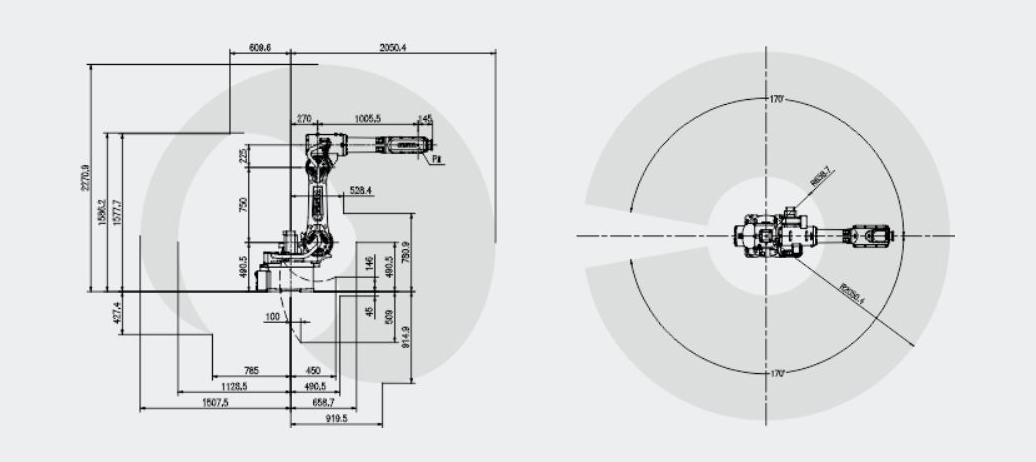

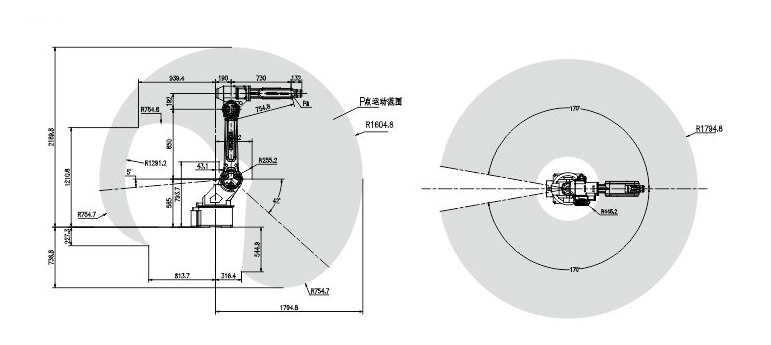

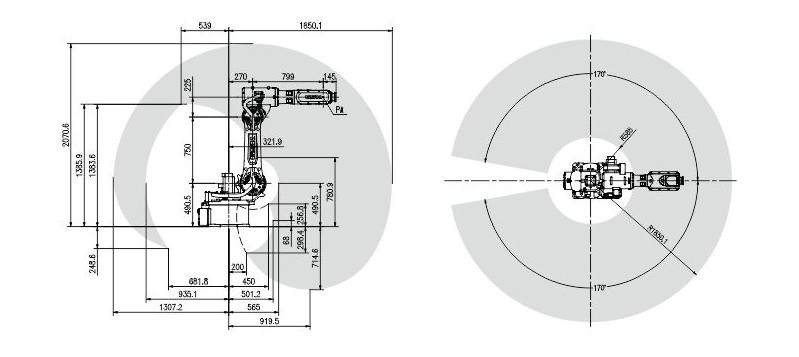

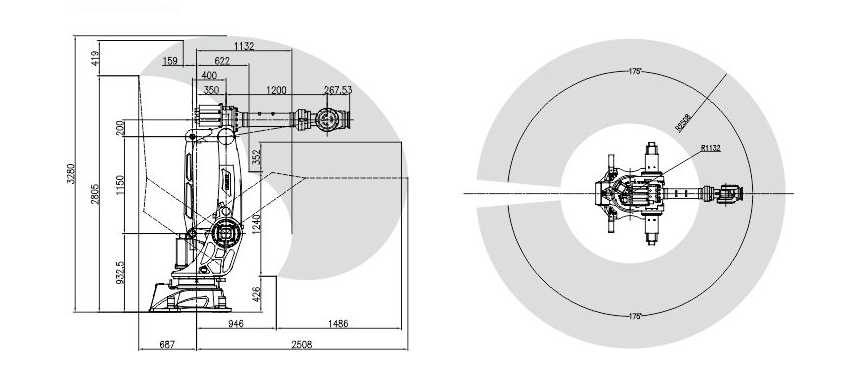

Inombolo yoMzekelo		Inqanaba leNkululeko	Imo yokuqhuba	Umthwalo womvuzo (ikg)	Ukuchaneka kokubeka okuphindaphindiweyo (mm)	Uluhlu lwentshukumo (°)						Isantya esiphezulu (°/s)						I-torque ephezulu evumelekileyo (N. m)			Irediyasi yentshukumo (mm)	Ubunzima beDeaa (kg)
Inombolo yoMzekelo		Inqanaba leNkululeko	Imo yokuqhuba	Umthwalo womvuzo (ikg)	Ukuchaneka kokubeka okuphindaphindiweyo (mm)	J1	J2	J3	J4	J5	J6	J1	J2	J3	J4	J5	J6	J4	J5	J6	Irediyasi yentshukumo (mm)	Ubunzima beDeaa (kg)

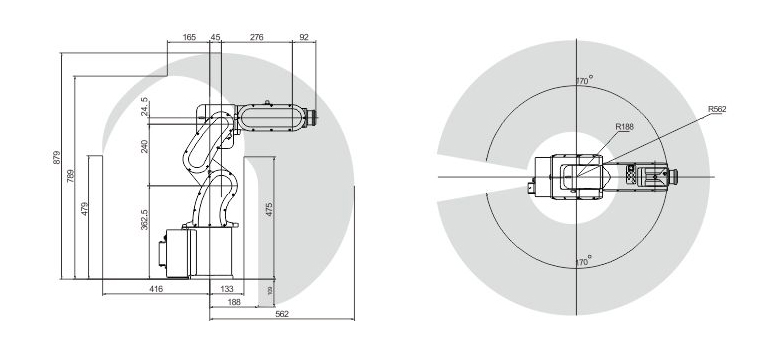

I-SDCX-RB03A1		6	I-AC servo drive	3	± 0.02	±150	+136~-51	+64~-131	±150	±120	±360	375	375	419	600	600	750	9.3	9.3	4.5	562	36
I-SDCX-RB06-900		6	I-AC servo drive	6	±0.03	±170	+135~100	+155~110	±170	±120	±360	337.5	270	375	300	375	468	12	10	6	900	60
I-SDCX-RB08		6	I-AC servo drive	8	±0.05	±170	+120~-85	+75~-155	±180	±135	±360	154	154	154	420	252	620	14	12	7	1389	180

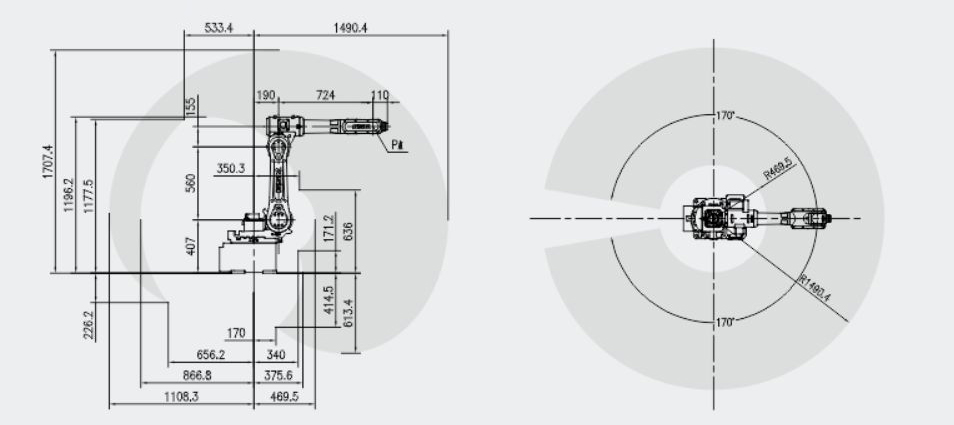

I-SDCX-RB08A3-1490		6	I-AC servo drive	8	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	200	200	200	400	356	600	14	12	7	1490	185
I-SDCX-RB08A3-1700		6	I-AC servo drive	8	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	180	180	180	400	356	600	14	12	7	1700	187
I-SDCX-RB08A3-1840		6	I-AC servo drive	6	±0.05	±170	+120~-85	+83~-150	±180	±135	±360	160	160	160	400	356	600	14	12	7	1840	180
I-SDCX-RB10		6	I-AC servo drive	10	±0.05	±170	+150~-85	+85~-170	±360	±120	±360	200	160	200	360	360	600	43.2	43.2	25.4	1550	240
Uthotho lwe-SDCX-RB20	I-SDCX-RB06-2060	6	I-AC servo drive	6	±0.05	±170	+145~-100	+75~-165	±180	±135	±360	165	165	170	300	356	600	40	12	7	2060	285
	I-SDCX-RB15L	6	I-AC servo drive	15	±0.05	±170	+145~-100	+75~-165	±180	±133	±360	165	165	170	300	198	394	40	50	22	1794	300

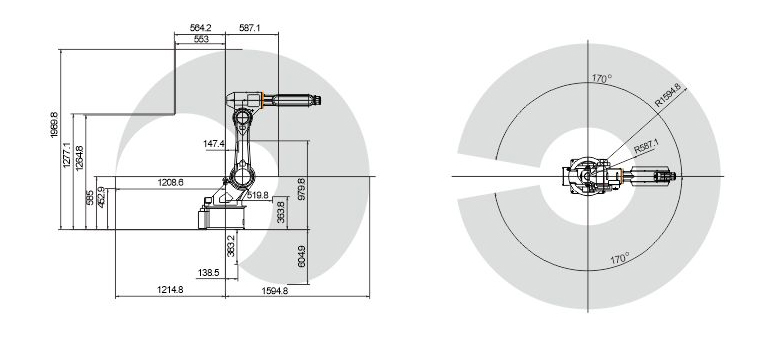

	I-SDCX-RB20	6	I-AC servo drive	20	±0.05	±170	+132~-95	+73~-163	±180	±133	±360	165	165	170	300	198	394	40	50	22	1595	290
I-SDCX-RB50		6	I-AC servo drive	50	±0.05	±178	+130~-90	+75~-200	±360	±115	±360	171	171	171	215	251	365	196	196	127	1956	600

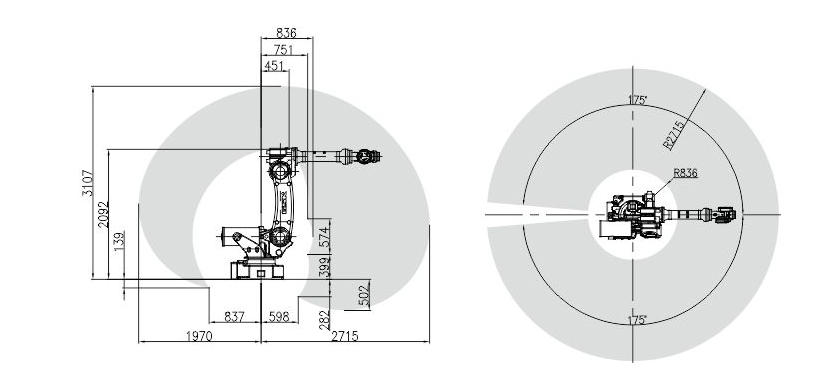

I-SDCX-RB130		6	I-AC servo drive	130	± 0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	165	174	238	951	951	490	2715	1420

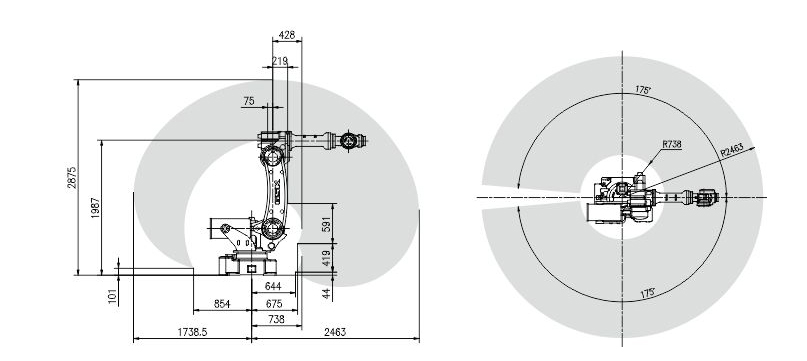

I-SDCX-RB165		6	I-AC servo drive	165	± 0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	152	160	220	951	951	490	2463	1400
I-SDCX-RB210		6	I-AC servo drive	210	± 0.20	±175	+75~-60	+80~-185	±360	±115	±360	100	94	104	144	118	200	1274	1274	686	2463	1430
I-SDCX-RB300		6	I-AC servo drive	300	± 0.20	±175	±55	+116~-85	±360	±115	±360	85	95	95	120	120	180	1274	1274	686	2508	1500

Kuphephe ukudibana neegesi kunye nolwelo oluvuthayo, oluqhumayo nolunokutsha; Musa ukutshiza ngamanzi, ioyile kunye nothuli; Gcina kude nemithombo yengxolo yombane (iplasma)
